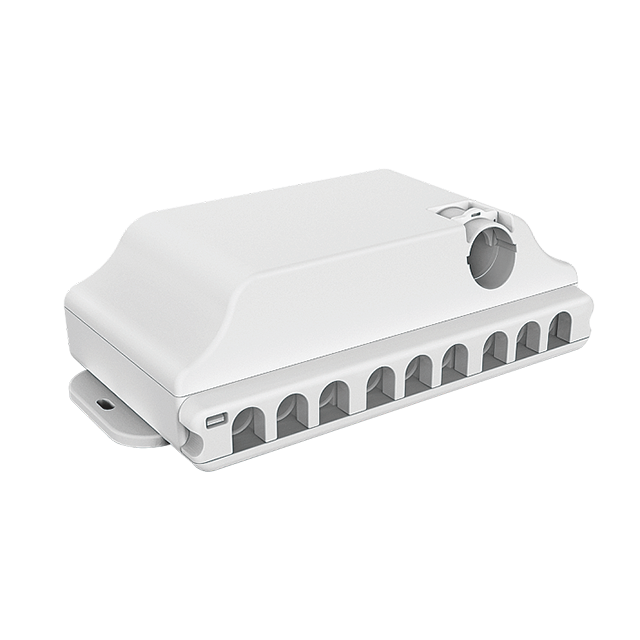

JCB35R

· Outputs for actuator: 1-7
· IP grade: Max. IPX6
· Power supply: SMPS
可用性ステータス:


  • Power: Input _ 100-240 VAC, 50/60 Hz; The output power is 200W in the rated state, and the output power is 320W in the working mode .

  • Power point light: Yes

  • Actuator interface: Max. 7 channels, 5-pin actuator straight plug

  • Hand controller interface: 1 channels, 8-pin actuator straight plug

  • Battery interface: 1 channels, 6-pin actuator straight plug

  • Standby power : maximum 1W (230V)

  • Color: gray

  • Control idea: relay, service life exceeds 20000 cycles

  • Duty cycle: 2/18min @ 25°C; On/off continuous use ( 320W at 25°C for 120 seconds)

  • Weight: 0.9kg

  • IP grade: Max. IPX6

  • Operation: synchronous drive

  • Single channel maximum current: 7 ± 0.5A

  • Power management: voltage management ensures maximum power operation and limits maximum output power

  • Safety system: thermal protection of switching power supply; over-current protection

  • Installation: bedstead (by screws)

  • Wire clip: all ports have.
